Movement Quartz

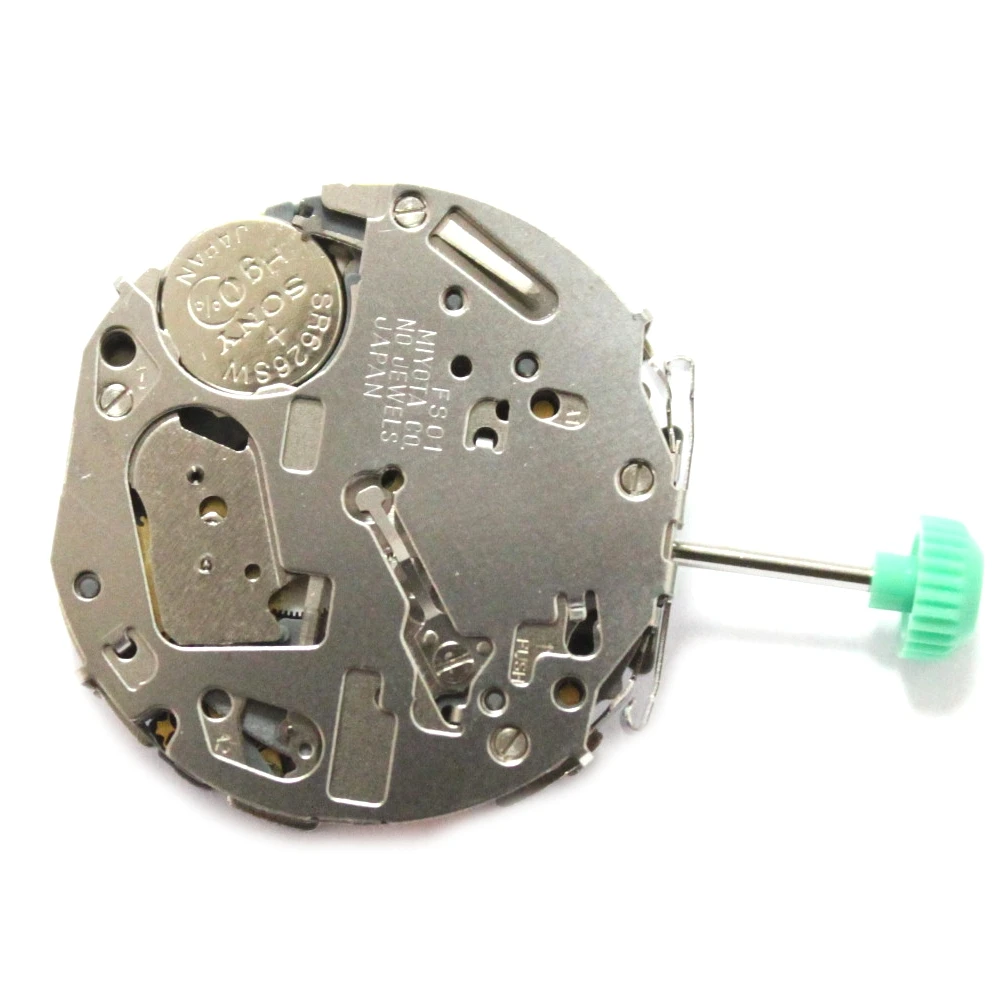

MIYOTA FS01 Japanese Movement Quartz Watch 10 1/2 Ligne or 23.5 mm

MIYOTA FS01 movements with chronograph functions are the most important part of a watch because it is the heart and brains of the timekeeping devices. You need to have a movement if you want your watch to work. MIYOTA FS01 movements are the new style of movement. It is built to last and come ready to install. MIYOTA FS01 movement is made by the MIYOTA division of Citizen LTD. These Japanese made movements fit many genuine watch brands. For example, Citizen, Tissot, Swatch, Timex and more more.

Description:

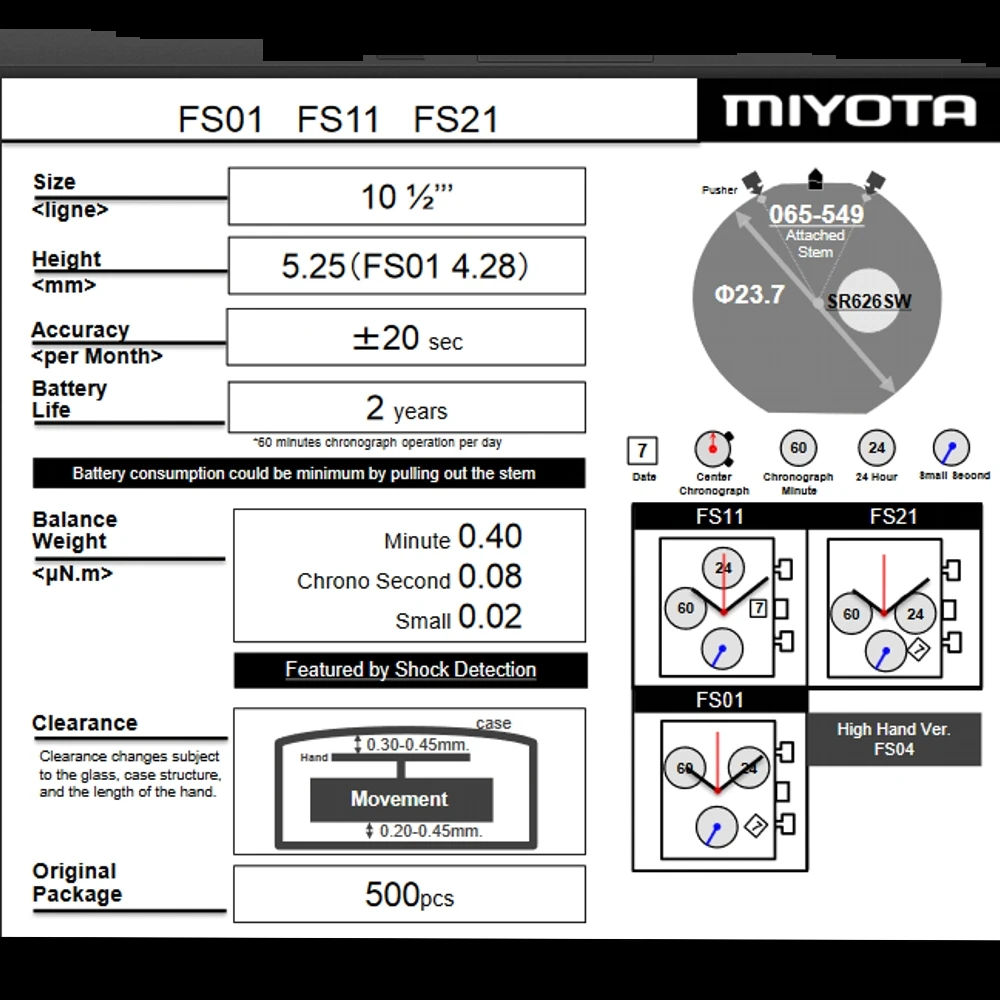

• MIYOTA Model Number : FS01
• Outside Diameter: 10 1/2 Ligne or 23.5 mm
• Movement 4.28 mm thick
• The height from the bottom of the watch movement to the top of the sweep second pinion is 6.2mm
• Dial feet at 6:30 and 11:00
• Has a date display inclined at 4:00
• Requires watch cell: 377
• Requires watch hands: hour 1.20, minute .70, and sweep second .17mm
• Has 2 parallel push buttons
• Chronograph
• Requires .25 mm small second hands for the 24 hour, day, and sec/min displays
• Has NO jewels
• Stem: 065-549, Tap 10
• Includes watch stem
• MIYOTA /Citizen LTD quartz movement
• Japanese assembled
• Our Store SKU Number: MO1062A
