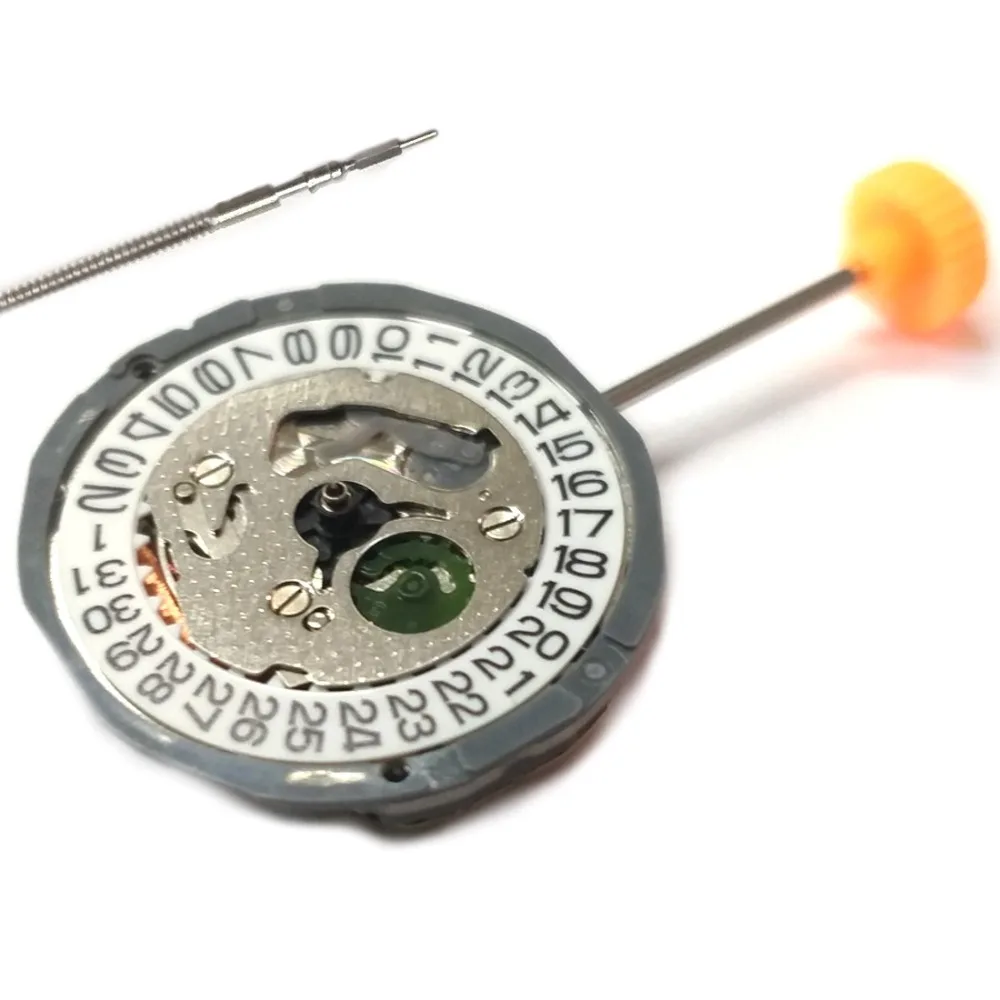

Miyota 1L12 movement with date functions are the most important part of a watch because it is the heart and brains of the timekeeping devices. You need to have a movement if you want your watch to work. Miyota 1L12 movement are the new style of movement. It is built to last and come ready to install. Miyota 1L12 movement is made by the Miyota division of Citizen LTD. These Japanese made movements fit many genuine watch brands. For example, Citizen, Tissot, Swatch, Timex and more more.
Miyota/Citizen LTD Watch Movement : Miyota 1L12
Outside Diameter: 6 3/4 x 8 Ligne or 15.3 x 17.8 mm
Movement 2.71 mm thick
The height from the bottom of the watch movement to the top of the sweep second pinion is 4.2mm
Dial feet at 6:30 and 11:30
Has a date display at 3:00
3 Hands Movement
Dial is white
Requires watch cell SR621Sw
Requires watch hands: hour 1.20, minute .70, and sweep second .17 mm
Has NO jewels
Stem: 065-505, Tap 10
The following stem is also available but must be ordered specially: 065-499, Tap 12
Includes watch stem
Miyota/Citizen LTD quartz movement
Japanese assembled
Model Number: MO1093A
Miyota 1L12 Quartz Movement Date At 3:00 Overall Height 4.2mm MO1093A
